DEFENDER-X
What is Defender-X?
It is an innovative security software that detects criminal intention by analyzing human mental status (emotions) in a video.
Defender-X was developed in institutions of the Russian government. Elsys Japan is the owner of the product, being Nichiei International a distributor. It does not guarantee crime prevention.
Operational achievements
About 500 Defender-X are already in operation in Russia, USA, Canada, Australia, Germany, Sweden, Switzerland, Egypt, Brazil, Vietnam, Indonesia, China, South Korea, and Japan.

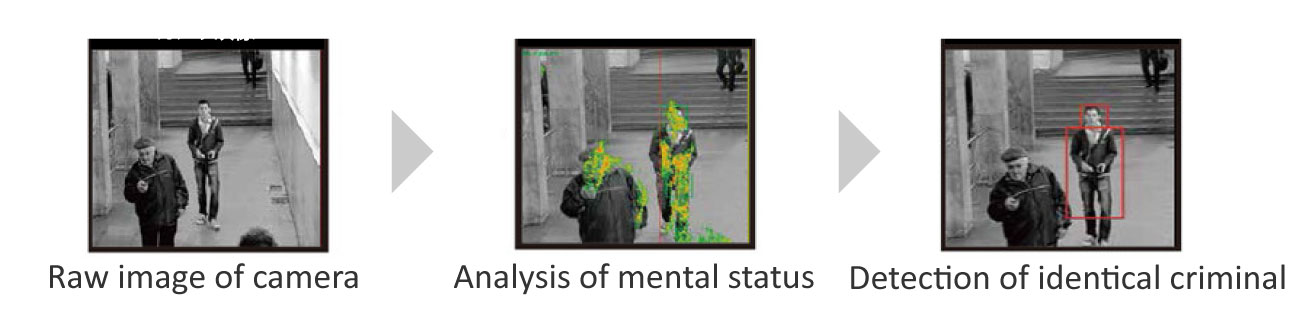

Example of analysis

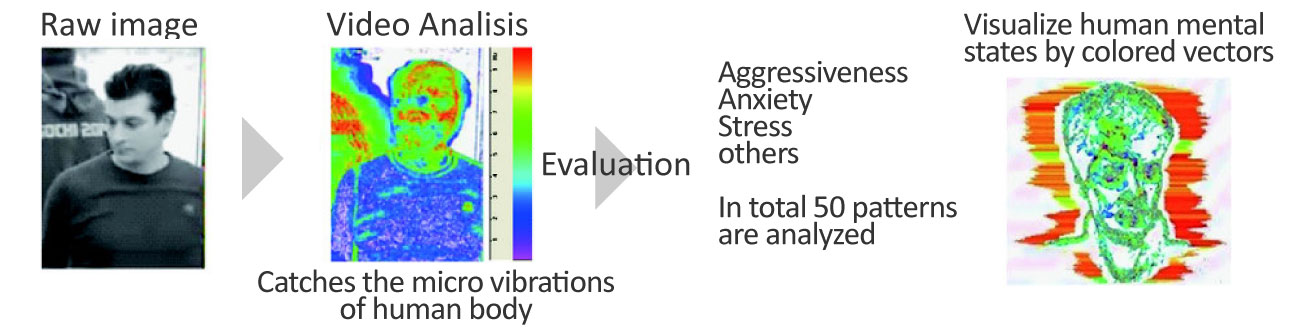

How does Defender-X work?

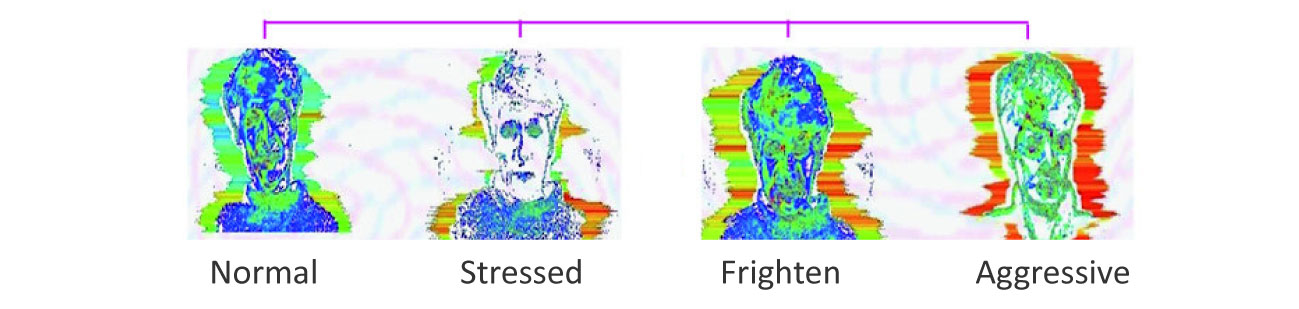

Defender-X visualizes the frequency and amplitude of micro movements with colors. It detects people in abnormal mental states who have different pattern of micro vibrations and considers them as a suspicious person. It is based on statistical data of micro vibration patterns collected in long-term experiments with more than 100,000 people tested.
What are the Advantages of implementing Defender-X?
- Possible to prevent suspicious person by detecting them in an early momentum
- Personal recognition database is not needed
- Real-time detection and analysis
- Easy to add in existing video system
- Applicable to various purposes for security measures
Product reliability (based on the results at Sochi Winter Olympic Games)
Security conditions
- Number of pavilions:17 (262 gates)
- Number of surveillance cameras:262 (1 per gate)
- Defender-X:131 (2 cameras per system)
Detection results
- Total number of visitors: 2,700,000 (120,000 per day)
- Number of people passing through each security check zone: 1,200 per day
- Number of detected people: 10 per secrurity check zone
- Result: 92% of the detected people by Defender X did have real motives to deny access to event
Operational Environment & Required Specifications
System
| Time for analysis | 2 seconds or more |
|---|---|
| Number of connectable cameras | maximum 2 cameras, depending on the specification of CPU/USB memories |
| Output when detecting suspicious |
red frame on display with immediate and seamless relay to digital caution and/or any type of alert |
| Operational environment |
1) size: larger than 200x200 pixels on VGA image, 10 people or less on display 2)illuminance: should be 400-600 Lx on the surface of subjects 3)stability: camera must be fixed for stable set up |
Camera
| Compatible cameras | web camera, IP camera, and analogue camera with encoders |
|---|---|
| Connection with IP cameras | any IP cameras with ONVIF profile S |
| Connection format | IP camera with ONVIF [MJPEG is preferable] |
| Necessary resolution | at least VGA [640x480] |
| Necessary frame rate | 25 fps or better under PAL standard. 30 fps is preferable under NTSC standard |
Recommended PC specifications
*Not installable above DirectX 9.0 *Unnecessary applications
*Preferable CPU with Corei7 6th generations above
*CPU Clock with more than 3.6GHz
*RAM DDR3 with more than 8GB
*HDD with more than 100GB
*USB2.0 with two ports or more
*PCI with one slot (option)
*Video capture with WDM compatible video device
*Audio capture device (16bit data with 44.1kHz stream frequency support)
*Network with more than 100BASE-TX
